ELG-200-C700AB

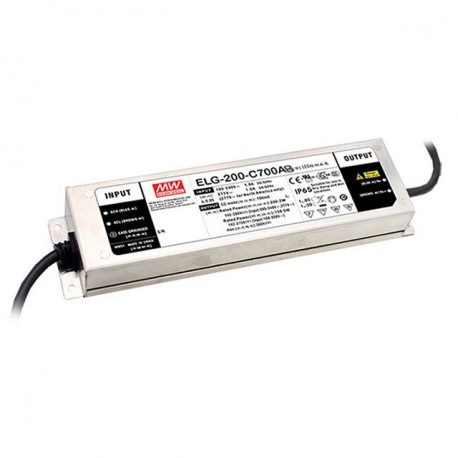

ELG-200-C700AB MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 286VD..
$0.00امریکی ڈالر
3755 اسٹاک میں
اہم وضاحتیں
نام:ELG-200-C700AB
ریاست:New
فارمیٹ:Box
سلسلہ:ELG-200-C-AB
سپلائر کی معلومات
MEANWELL
پروڈکٹس: 6448
عام طور پر 2-3 کاروباری دنوں میں بھیج دیا جاتا ہے
کوالٹی کی ضمانت
تیز شپنگ
تکنیکی معاونت
تکنیکی تفصیلات
| پیرامیٹر | قیمت |
|---|---|
| نام | ELG-200-C700AB |
| ریاست | New |
| فارمیٹ | Box |
| سلسلہ | ELG-200-C-AB |
| مدھم کرنا | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
| منظوری | CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| پاور (W) | 200,20 |
| ذیلی فارمیٹو | IP65 |
| چوڑائی (ملی میٹر) | 71.00 |
| اونچائی (ملی میٹر) | 37.50 |
| AC ان پٹ زیادہ سے زیادہ | 305,00 |
| AC ان پٹ منٹ | 100,00 |
| ایپلی کیشنز | Lighting |
| کارخانہ دار | MEAN WELL |
| مصنوعات کی قسم | LED Driver |
| تنہائی (V) | 3.750,00 |
| چوٹی کی طاقت (W) | 200.2 |
| ان پٹ کنیکٹر | Cable |
| ان پٹ فریکوئنسی | 50 Hz, 60 Hz |
| طویل/پس منظر | 244.00 |
| لمبی تفصیل | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range100-305Vca47-63Hz.Output in constant current700mA.Adjustable by external potentiometer (350-700mA).Range of output voltage with current mode constant142 to 286Vccaccording to demand load.Power:200,2 W.Efficiency typical:93%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):244 x 71 x 37.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byexternal potentiometerlocated in the housing of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.The series ELG are LED drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-200-C700AB-3Y.With metal housing IP65. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| آؤٹ پٹ کنیکٹر | Cable |
| داخلے کی قسم CA | Single-phase |
| وارنٹی (سال) | 5,00 |
| اصل ملک | China |
| آؤٹ پٹ کرنٹ ایم اے | 350, 400, 450, 500, 550, 600, 650, 700 |
| کم از کم آؤٹ پٹ کی شدت (ایم اے) | 350,00 |
| آؤٹ پٹ زیادہ سے زیادہ کی شدت (ایم اے) | 700,00 |
پروڈکٹ کی وضاحت
More details
اہم خصوصیات
- صنعتی معیار
- RoHS کے مطابق
- سی ای سرٹیفائیڈ
- 1 سال کی وارنٹی
تکنیکی تفصیلات
LED driver dimmable.
