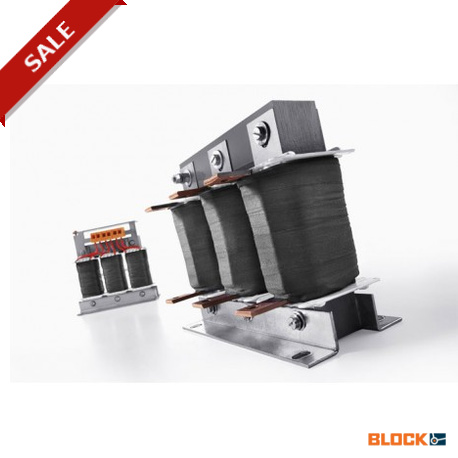

MDB 400/110

General Data Rated voltage3 x 400 Vac Rated current 6.3 ‑ 176 A For motor rated output 2.2 ‑ 90 kW For switching frequencies of 2 to 6 kHz Rated frequency from 0 to 120 Hz Insulation class F Maximum ambient temperature 40 °C Degree of protection IP 00 Advantages High damping of edge steepness High damping of inverter switching frequency Reduction of leakage current Long shielded cable lengths possible High efficiency Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation Standards Output reactor for frequency inverterDIN EN 61558‑2‑20, IEC 61558‑2‑20
