PSC-160A-C

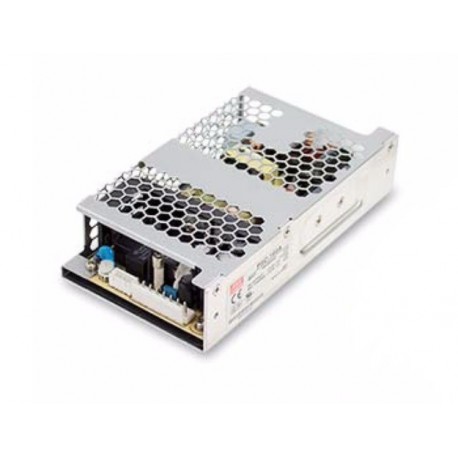

PSC-160A-C MEANWELL AC-DC Single output open frame power supply with battery charger (UPS function), Output ..
$0.00امریکی ڈالر
4950 اسٹاک میں
اہم وضاحتیں
اوہ:24, 25, 26, 30, 35, 40, 45, 50, 60, 65, 70
نام:PSC-160A-C
الارم:Battery Low, mains Failure
فارمیٹ:Box
سپلائر کی معلومات
MEANWELL
پروڈکٹس: 6448
عام طور پر 2-3 کاروباری دنوں میں بھیج دیا جاتا ہے
کوالٹی کی ضمانت
تیز شپنگ
تکنیکی معاونت
تکنیکی تفصیلات
| پیرامیٹر | قیمت |
|---|---|
| اوہ | 24, 25, 26, 30, 35, 40, 45, 50, 60, 65, 70 |
| نام | PSC-160A-C |
| الارم | Battery Low, mains Failure |
| فارمیٹ | Box |
| سلسلہ | PSC-160-C |
| آؤٹ پٹ 1 | +12 |
| منظوری | CE, UL |
| پاور (W) | 160,00 |
| ذیلی فارمیٹو | Grid |
| چوڑائی (ملی میٹر) | 85.00 |
| اونچائی (ملی میٹر) | 37.00 |
| ایپلی کیشنز | Building automation, Industrial, Telecommunications |
| بیٹری کی قسم | Lead, AGM, Wet |
| کارخانہ دار | MEAN WELL |
| مصنوعات کی قسم | UPS |
| چارج کے مراحل | Two |
| تنہائی (V) | 3.000,00 |
| چوٹی کی طاقت (W) | One hundred sixty |
| ان پٹ کنیکٹر | Plug-in |
| طویل/پس منظر | 155.40 |
| لمبی تفصیل | UPS input switches and output continuously.Format box of the grid.Range of universal input90-264vac. 47-63Hz.Output voltagefor the loadwith power: 13,8 Vdc.Output voltage in battery mode: voltage of the battery.Output intensityOf 7.6 To. Peak At 11.6 A.Float voltageadjustable12-15vdc. (The setting of the float voltage also adjusts the output voltage of power supply).Intensity of load4A.Power:160W.Type of batteries:Gel, AGM and wet.Battery capacity:24-70Ah.Efficiency typical:88%at full load with power.Protection against deep discharge of the batteries.No cut in output in the step feed mode to battery mode. 0ms transfer time.Alarms correct supply AC OK and battery low via TTL signal to open collector.Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Larco x Width x Height) [mm]:Eur 155.4 x 85 x 37.2 years of warranty.Manufacturer: MEAN WELL.The series PSC are Ups input switches and output continuously. When there is mains power the computer gives a stable output while charging the battery. In case of failure of power supply maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse). Also feature alarms by signal: TTL open collector which alert us in case of network failure or when the output voltage is lower than a certain value, indicating that the capacity of the battery is low. |
| آؤٹ پٹ کنیکٹر | Plug-in |
| داخلے کی قسم CA | Single-phase |
| وارنٹی (سال) | 2,00 |
| اصل ملک | China |
پروڈکٹ کی وضاحت
More details
اہم خصوصیات
- صنعتی معیار
- RoHS کے مطابق
- سی ای سرٹیفائیڈ
- 1 سال کی وارنٹی
تکنیکی تفصیلات
UPS input switches and output continuously.
