UFX505C2

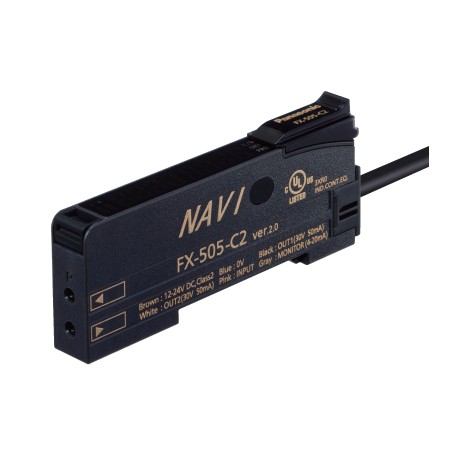

UFX505C2 FX-505-C2 PANASONIC Fiber amplifier, NPN, analogue output, double display
$0.00امریکی ڈالر
4554 اسٹاک میں
اہم وضاحتیں
آئٹم:Specifications
کیبل:0.2 mm26-core cabtyre cable, 2 m6.562 ftlong
وزن:Net weight: 60 g approx.Gross weight: 100 g approx.
تفصیلات:Cable type
سپلائر کی معلومات
PANASONIC
پروڈکٹس: 4316
عام طور پر 2-3 کاروباری دنوں میں بھیج دیا جاتا ہے
کوالٹی کی ضمانت
تیز شپنگ
تکنیکی معاونت
تکنیکی تفصیلات
| پیرامیٹر | قیمت |
|---|---|
| آئٹم | Specifications |
| کیبل | 0.2 mm26-core cabtyre cable, 2 m6.562 ftlong |
| وزن | Net weight: 60 g approx.Gross weight: 100 g approx. |
| تفصیلات | Cable type |
| پروڈکٹ | Digital Fiber Sensor |
| مواد | Enclosure, Case cover: PolycarbonateSwitch: Polyacetal |
| لوازمات | FX-MB1 (Amplifier protection seal): 1 set |
| تحفظ | IP40 (IEC) |
| پارٹ نمبر | FX-505-C2 |
| پروڈکٹ کا نام | Digital Fiber Sensor FX-500 Ver.2 |
| ینالاگ آؤٹ پٹ | Output current: 4 to 20 mA approx. [H-SP, FAST STD: At 0 to 4,000 digits, LONG: At 0 to 8,000 digits (Note) ]Response time: 2 ms or lessZero point: Within 4 mA plus or minus 1 % F.S.Span: Within 16 mA plus or minus 5 % F.S.Linearity: Within plus or minus 3 % F.S.Load resistance: 0 to 250 Ohm(Note) If display adjustment was conducted, it is not in this range. |
| جوابی وقت | H-SP: 25 micro s or lessFAST: 60 micro s or lessSTD: 250 micro s or lessLONG: 2 ms or lessU-LG: 4 ms or lessHYPR: 24 ms or less, selectable |
| بیرونی ان پٹ | NPN non-contact input- Signal conditionHigh: +8 V to +V DC or OpenLow: 0 to +1.2 V DC(at 0.5 mA source current)- Input impedance: 10 kOhm approx. |
| پروڈکٹ نمبر | FX-505-C2 |
| سپلائی وولٹیج | 12 to 24 V DC+10-15 % Ripple P-P 10 % or less |
| ٹائمر فنکشن | Incorporated with variable OFF-delay / ON-delay /One-shot / ON-delay - OFF-delay / ON-delay - One-shot timer, switchable either effective or ineffectiveIncorporated with variable OFF-delay / ON-delay /One-shot timer, switchable either effective or ineffective |
| کیبل کی توسیع | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. (however, supply voltage 12 V DC or more) |
| مختلف ترتیبات | Hysteresis setting / Shift amount setting / Emission power setting / Display turning setting / ECO setting / Data bank loading saving setting / Copying setting / Code setting / Reset setting / Logical calculation setting / Threshold value tracking setting, etc. |
| بجلی کی کھپت | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage, excluding analog output)ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage, excluding analog output) |
| آؤٹ پٹ 1، آؤٹ پٹ 2 | NPN open-collector transistor- Maximum sink current: 50 mA (Note 1)- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (Note 2) (at maximum sink current)(Note 1) 50 mA max. if 5 or more standard types are connected together.(Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type) |
| محیطی درجہ حرارت | -10 to +55 ℉+14 to +131 ℉[If 4 to 7 units are mounted in cascade: -10 to +50 ℉+14 to +122 ℉or if 8 to 12 units are mounted in cascade: -10 to +45 ℉+14 to +113 ℉] (No dew condensation or icing allowed), Storage: -20 to +70 ℉-4 to +158 ℉ |
| حساسیت کی ترتیب | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| ٹائمر فنکشن: ٹائمر کی مدت | Timer range ''ms'': 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx.Timer range ''sec.'': 0.5 s approx., 1 to 32 s approx., 1 s approx.Timer range ''1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., 0.1 ms approx.each output is set individually |
| خارج کرنے والا عنصر (ماڈیولڈ) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
| CE نشان زد ہدایت کی تعمیل | EMC Directive, RoHS Directive |
| اخراج کی رقم کی ترتیب کی تقریب | Incorporated, 3 levels (each level 25 to 100 %) + Auto setting [1 level (25 to 100 %) when using H-SP mode] |
| مداخلت کی روک تھام کی تقریب | Incorporated (Note) , selectable either automatic interference prevention or different frequency(Note) Number of sensor heads which is possible to be mounted closely in auto interference prevention function depends on response time as shown in table below.Number of sensor heads which is possible to be mounted closely in different frequency Interference prevention function is up to 3 units.- Number of sensor heads mountable closely (Unit: set)Response time: IP-1H-SP: 0FAST: 2STD: 4LONG: 8U-LG: 8HYPR: 12 |
| آؤٹ پٹ 1، آؤٹ پٹ 2: آؤٹ پٹ پوائنٹس | 2 points |
| ممکنہ بیرونی ان پٹ فنکشن | Emission halt / Teaching (Full-auto, Limit, 2-point) / Logic operation setting / Copy lock / Display adjustment / Data bank load / Data bank save, selectable |
| آؤٹ پٹ 1، آؤٹ پٹ 2: آؤٹ پٹ آپریشن | Switchable either Light-ON or Dark-ON by L/D mode |
| واقعہ روشنی کی شدت کے ڈسپلے کی حد | H-SP / FAST / STD: 0 to 4,000LONG: 0 to 8,000U-LG / HYPR: 0 to 9,999 |
| بیرونی ان پٹ (آؤٹ پٹ 2 کے ساتھ سوئچ ایبل) | - |
| آؤٹ پٹ 1، آؤٹ پٹ 2: شارٹ سرکٹ پروٹیکشن | Incorporated |
پروڈکٹ کی وضاحت
FX-500 F Amplifier. Optical, analog output, 2 NPN outputs, dual display, high sensitivity and detection distance, ultra-fast
اہم خصوصیات
- صنعتی معیار
- RoHS کے مطابق
- سی ای سرٹیفائیڈ
- 1 سال کی وارنٹی
