USFC21

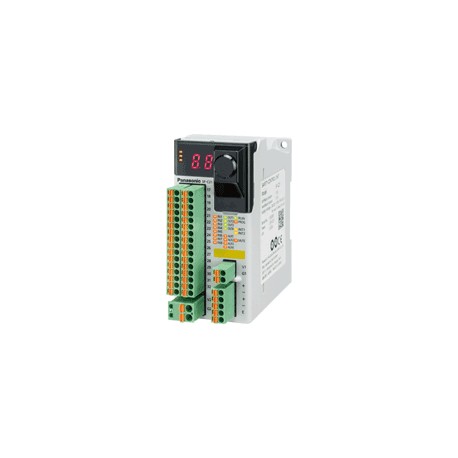

USFC21 SF-C21 PANASONIC Safety control unit for safety light curtain and other safety products, 8 inputs 24V..
$0.00امریکی ڈالر
4642 اسٹاک میں
اہم وضاحتیں
آئٹم:Specifications
وزن:Net weight: 190 g approx.Gross weight: 320 g approx.
پروڈکٹ:Safety Control Unit
مواد:Main unit enclosure: Polycarbonate / ABS polymer alloyEnclosure: Polycarbonate
سپلائر کی معلومات
PANASONIC
پروڈکٹس: 4316
عام طور پر 2-3 کاروباری دنوں میں بھیج دیا جاتا ہے
کوالٹی کی ضمانت
تیز شپنگ
تکنیکی معاونت
تکنیکی تفصیلات
| پیرامیٹر | قیمت |
|---|---|
| آئٹم | Specifications |
| وزن | Net weight: 190 g approx.Gross weight: 320 g approx. |
| پروڈکٹ | Safety Control Unit |
| مواد | Main unit enclosure: Polycarbonate / ABS polymer alloyEnclosure: Polycarbonate |
| پی ایف ایچ ڈی/ ایم ٹی ٹی ایف ڈی | 9.73 x 10−10/ 100 years or more |
| پارٹ نمبر | SF-C21 |
| کیبل کی لمبائی | 100 m328.084 ftor less |
| پروڈکٹ کا نام | Safety Control Unit SF-C21 |
| پروڈکٹ نمبر | SF-C21 |
| آلودگی کی ڈگری | 2 |
| جڑنے کا طریقہ | Input / output and power supply: Detachable spring cage termina l blocksRS-485: Detachable spring-cage terminal blockUSB: Mini-B male |
| متعلقہ معیارات | IEC 60947-1, IEC 60947-5-1, IEC 60947-5-2, IEC 60947-5-5, IEC 60947-5-8, IEC 61496-1, IEC TS 62046, ISO 13851 |
| انٹرلاک فنکشن | Incorporated |
| آپریٹنگ اونچائی | 2,000 m6561.680 ftor less(Note) Do not use or store this device in a pressurized environment beyond the atmospheric pressure at sea level. |
| کمپن مزاحمت | 5 to 8.4 Hz frequency, 3.5 mm0.138 inhalf amplitude, 8.4 to 150 Hz frequency, Max. acceleration 9.8 m/s2(1 G), in X, Y and Z directions for two hours each (IEC / EN 60068-2-6) |
| منطق کی ترتیب کا فنکشن | Input mode, control mode, output mode, reset mode, auxiliary ou tput mode |
| اضافی وولٹیج زمرہ | II |
| اشارے آؤٹ پٹ کو خاموش کرنا | Semiconductor photo MOS relay output x 1- Maximum load current: 60 mA- Supply voltage: Same as the voltage of the power supply for internal- Residual voltage: 2.5 V or less- Leakage current: 100 μA or less (Including power supply OFF condition) |
| لاک آؤٹ ریلیز فنکشن | Incorporated |
| منطق کے انتخاب کا فنکشن | No.0: Customization controlNo.1: Overall stop controlNo.2: Parallel muting controlNo.3: Sequential muting controlNo.4: Partial stop control 1No.5: Partial stop control 2No.6: Two-hand controlNo.7: OR controlNo.8: Operation mode selection control |
| حفاظتی ان پٹ (IN1 سے IN8) | 2 inputs x 4, Rated voltage: Same as the voltage of the power supply for internal |
| قابل اطلاق معیارات: EMC | IEC 61000-6-2, IEC 61326-3-1, EN 55011 |
| پاور آن ہونے کے بعد شروع ہونے کا وقت | 2 sec. or less |
| قابل اطلاق معیارات: حفاظت | IEC 61508-1 to 3, EN 61508-1 to 3 (SIL3), ISO 13849-1:2015 (Category 4, PLe), IEC 61131-2, IEC 61010-2-201, IEC 62061 (SILCL3), UL 61010-1, UL 61010-2-201, UL 1998 |
| کنٹرول آؤٹ پٹ (OUT1 سے OUT4) | PNP open-collector transistor with 2 outputs x 2- Maximum source current: 300 mA / output- Applied voltage: Same as the voltage of the power supply for external- Residual voltage: 2.5 V or less- Leakage current: 100 μA or less (Including power supply OFF condition) |
| کمیونیکیشن فنکشن (MODBUS RTU) | Interface: RS-485Protocol: MODBUS RTUMaximum transmission distance: 100 m328.084 ftMaximum number of units that can be connected: 8 units (slaves) |
| بیرونی آلہ کی نگرانی کی تقریب | Incorporated |
| سیفٹی ان پٹ (IN1 سے IN8) : آن لیول | Input voltage: 18 VInput current: 3.5 mA |
| اشارے آؤٹ پٹ کو خاموش کرنا: آؤٹ پٹ موڈ | ON when muting / override |
| سیفٹی ان پٹ (IN1 سے IN8) : آف لیول | Input voltage: 5 VInput current: 1.0 mA |
| اشارے آؤٹ پٹ کو خاموش کرنا: رسپانس ٹائم | 10 ms or less |
| قابل اطلاق ضوابط اور سرٹیفیکیشن | CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety)Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification, Korea's Radio Waves Act conformity registration |
| ماحولیاتی مزاحمت: محیطی نمی | 30 to 85 % RH, Storage: 30 to 85 % RH |
| ماحولیاتی مزاحمت: جھٹکا مزاحمت | 147 m/s2(15 G) 11 ms in X, Y and Z directions for three times each (IEC / EN 60068-2-27) |
| سپلائی وولٹیج: بیرونی کے لیے بجلی کی فراہمی | 24 V DC+10-15% Ripple P-P10 % or less(Note) "Power supply for external" is the power supply for control output / auxiliary output. The power supplies for internal and external are insulated.(Note) The power supply unit connected to this device must satisfy the conditions below.- Output voltage within 20.4 V to 26.4 V DC (Ripple P-P: 10 % or less.)- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Directive and Low-voltage Directive (In case CE Marking conformity is required.)- Power supply unit conforming to the Low-voltage Directive and with an output of 100 VA or less- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Regulations and Low-voltage Regulations (In case UKCA Marking conformity is required.)- Power supply unit with an output holding time of 20 ms or more.- Power supply unit corresponding to CLASS 2 (In case C-TÜV US Listing Mark conformity is required.) |
| سپلائی وولٹیج: اندرونی کے لیے بجلی کی فراہمی | 24 V DC+10-15% Ripple P-P10 % or less(Note) "Power supply for internal" is the power supply for safety input. The power supplies for internal and external are insulated.(Note) The power supply unit connected to this device must satisfy the conditions below.- Output voltage within 20.4 V to 26.4 V DC (Ripple P-P: 10 % or less.)- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Directive and Low-voltage Directive (In case CE Marking conformity is required.)- Power supply unit conforming to the Low-voltage Directive and with an output of 100 VA or less- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Regulations and Low-voltage Regulations (In case UKCA Marking conformity is required.)- Power supply unit with an output holding time of 20 ms or more.- Power supply unit corresponding to CLASS 2 (In case C-TÜV US Listing Mark conformity is required.) |
| کنٹرول آؤٹ پٹ (OUT1 سے OUT4): آؤٹ پٹ موڈ | True: ONFalse: OFF |
| حفاظتی ان پٹ (IN1 سے IN8) : ان پٹ رکاوٹ | 4.7 KΩ approx. |
| ماحولیاتی مزاحمت: محیطی درجہ حرارت | -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +60 ℃-13 to +140 ℉ |
| کنٹرول آؤٹ پٹ (OUT1 سے OUT4) : رسپانس ٹائم | OFF response: 10 ms or lessON response: 100 ms or less |
| ماحولیاتی مزاحمت: تحفظ کی ڈگری | IP20 (IEC)(must be installed in a control panel with protectio n IP54 or higher) |
| ماحولیاتی مزاحمت: موصلیت مزاحمت | 20 MΩ, or more, with 500 V DC megger(All inputs connected together - USB port, all inputs connected together - RS-485 port, USB port - RS-485 port, between all supply terminals connected together and enclosure, all outputs connected together - all input connected together, all outputs connected together - USB port, all outputs connected together - RS-485 port) |
| موجودہ کھپت: بیرونی کے لیے بجلی کی فراہمی | 100 mA or less(Note) "Power supply for external" is the power supply for control output / auxiliary output. The power supplies for internal and external are insulated.(Note) The power supply unit connected to this device must satisfy the conditions below.- Output voltage within 20.4 V to 26.4 V DC (Ripple P-P: 10 % or less.)- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Directive and Low-voltage Directive (In case CE Marking conformity is required.)- Power supply unit conforming to the Low-voltage Directive and with an output of 100 VA or less- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Regulations and Low-voltage Regulations (In case UKCA Marking conformity is required.)- Power supply unit with an output holding time of 20 ms or more.- Power supply unit corresponding to CLASS 2 (In case C-TÜV US Listing Mark conformity is required.) |
| موجودہ کھپت: اندرونی کے لئے بجلی کی فراہمی | 200 mA or less(Note) "Power supply for internal" is the power supply for safety input. The power supplies for internal and external are insulated.(Note) The power supply unit connected to this device must satisfy the conditions below.- Output voltage within 20.4 V to 26.4 V DC (Ripple P-P: 10 % or less.)- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Directive and Low-voltage Directive (In case CE Marking conformity is required.)- Power supply unit conforming to the Low-voltage Directive and with an output of 100 VA or less- Power supply unit SELV (safety extra low voltage) / PELV (protected extra low voltage) conforming to the EMC Regulations and Low-voltage Regulations (In case UKCA Marking conformity is required.)- Power supply unit with an output holding time of 20 ms or more.- Power supply unit corresponding to CLASS 2 (In case C-TÜV US Listing Mark conformity is required.) |
| سیفٹی ان پٹ (IN1 سے IN8) : شرح شدہ ان پٹ کرنٹ | 5 mA approx. |
| معاون پیداوار (AUX1 سے AUX4) (غیر حفاظتی پیداوار) | PNP open-collector transistor with 1 output x 4- Maximum source current: 60 mA / output- Applied voltage: Same as the voltage of the power supply for external- Residual voltage: 2.5 V or less- Leakage current: 100 μA or less (Including power supply OFF condition) |
| کنٹرول آؤٹ پٹ (OUT1 سے OUT4) : ON تاخیر کی تقریب | Incorporated |
| ماحولیاتی مزاحمت: وولٹیج کے خلاف مزاحمت | 1,000 V AC for one min.(All inputs connected together - USB port, all inputs connected together - RS-485 port, USB port - RS-485 port, between all supply terminals connected together and enclosure, all outputs connected together - all input connected together, all outputs connected together - USB port, all outputs connected together - RS-485 port) |
| کنٹرول آؤٹ پٹ (آؤٹ 1 سے آؤٹ 4) : تاخیر سے بند ہونا | Incorporated |
| اشارے آؤٹ پٹ کو خاموش کرنا: شارٹ سرکٹ تحفظ | Incorporated |
| کنٹرول آؤٹ پٹ (OUT1 سے OUT4) : شارٹ سرکٹ تحفظ | Incorporated |
| سیفٹی ان پٹ (IN1 سے IN8) : قابل شناخت آن حالت کا دورانیہ | 10 ms or more |
| سیفٹی ان پٹ (IN1 سے IN8) : ناقابل شناخت آف اسٹیٹ کا دورانیہ | 0.7 ms or less |
| معاون پیداوار (AUX1 سے AUX4) (غیر حفاظتی پیداوار) : رسپانس ٹائم | 10 ms or less |
| معاون پیداوار (AUX1 سے AUX4) (غیر حفاظتی پیداوار): شارٹ سرکٹ تحفظ | Incorporated |
| معاون آؤٹ پٹ (AUX1 سے AUX4) (غیر حفاظتی آؤٹ پٹ): آؤٹ پٹ موڈ (فیکٹری ڈیفالٹس) | AUX1: Negative logic of OUT1 / OUT2 (ON when OUT1 / OUT2 is OFF)AUX2: Negative logic of OUT3 / OUT4 (ON when OUT3 / OUT4 is OFF)AUX3: Reset trigger output (ON under reset release wait condition)AUX4: Lockout output (OFF when lockout) |
| معاون آؤٹ پٹ (AUX1 سے AUX4) (نان سیفٹی آؤٹ پٹ) : آؤٹ پٹ موڈ (کسی بھی معاون آؤٹ پٹ کو سافٹ ویئر ٹول کا استعمال کرتے ہوئے اپنی مرضی کے مطابق بنایا جا سکتا ہے) | Negative logic of OUT1 / OUT2 (ON when OUT1 / OUT2 is OFF)Negative logic of OUT3 / OUT4 (ON when OUT3 / OUT4 is OFF)Positive logic of OUT1 / OUT2 (ON when OUT1 / OUT2 is ON)Positive logic of OUT3 / OUT4 (ON when OUT3 / OUT4 is ON)Outputs A, B, C, and D of diagnosis results of input blocks (ON when logic is true)Outputs E, F, and G of internal logic circuit diagnostic results (ON when logic is true)Reset trigger output (ON under reset release wait condition)Lockout output (OFF when lockout)Muting indicator output (ON when muting / override)Monitor output in response to IN1 to IN8 (ON when input)No output (normally OFF) |
پروڈکٹ کی وضاحت
Control unit for barriers and other safety products, Cat. 4(Ple) and SIL3, 4 inputs, 2 outputs, 8 pre-established logics according to cat regulations. 4 (Ple) and 1 customizable logic, self-diagnostic
اہم خصوصیات
- صنعتی معیار
- RoHS کے مطابق
- سی ای سرٹیفائیڈ
- 1 سال کی وارنٹی
پروڈکٹ دستاویزات
ڈیٹا شیٹ
تکنیکی تفصیلات اور کارکردگی کے ڈیٹا
یوزر مینول
انسٹالیشن اور آپریشن گائیڈ
